Rivet Bush Tooling for Haeger Presses

Please Note: TR do not stock or supply these items. Please check directly with Haeger before specifying or procuring these products

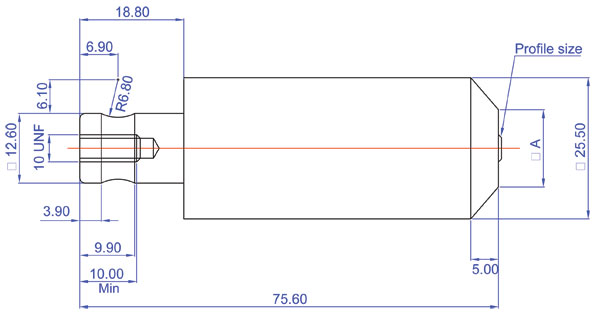

M2 - M5 Punch



Haeger M2   M5 Punch

Detail 1 - Oil hardening steel 665 M17 (EN34)

Note: 760°C - 780°C Oil quench Temper 150°C - 200°C

Tool Profile size
Size Ø A (Min) Hanksert & Hanksert Standoff Hexagon & Tank Pattern Round Pattern Hanksert Mini & Hanksert Mini Standoff Swage Nut
M2 5.00 - - - TS 1702-04 -
M2.5 & M3 9.05 TS 1702-01 TS 1702-02 TS 1702-03 TS 1702-05
M3.5 & M4 10.50
M5 12.00


M6-12 Punch


Haeger M6   M12 Punch



Detail 1 - Oil hardening steel 665 M17 (EN34)

Note: 760°C - 780°C Temper 150°C - 200°C

Tool Profile size
Size Ø A (Min)    Hanksert & Hanksert Standoff Hexagon & Tank Pattern Round Pattern Hanksert Mini & Hanksert Mini Standoff Swage Nut
M6 14.00 TS 1702-01 TS 1702-02 TS 1702-03 TS 1702-04 TS 1702-05
M8 16.30
M10 21.90 -
M12 25.40





Note: Due to the fact that fastening applications differ greatly, the above information is for guidance only and is correct to the best of our knowledge. The customer must satisfy themselves with the performance of the fastener and validity of the data. TR Fastenings will not be held responsible for any failure that may occur from the use of this information.
